Throttle Body

The throttle is a crucial component in an internal combustion engine that regulates the engine's power and speed by controlling the amount of air and fuel mixture entering the combustion chamber. It plays a vital role in the vehicle's acceleration and overall performance

.

Key Characteristics of a Throttle:



1. Functionality:

   • The throttle controls the engine's air intake by adjusting the opening of the throttle valve.
   • It influences the amount of air that mixes with fuel for combustion, directly affecting engine speed and power output.
   • In modern vehicles, it also communicates with the engine control unit (ECU) to optimize fuel delivery and combustion efficiency.

2. Components:

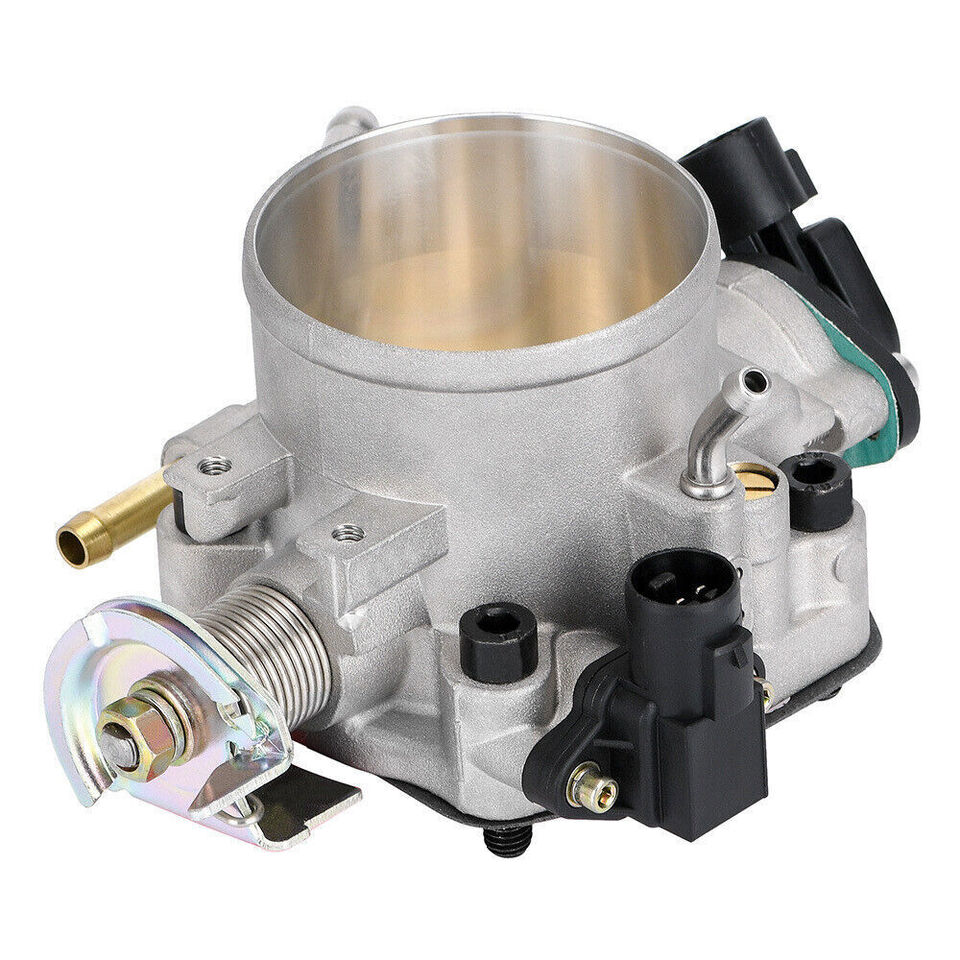

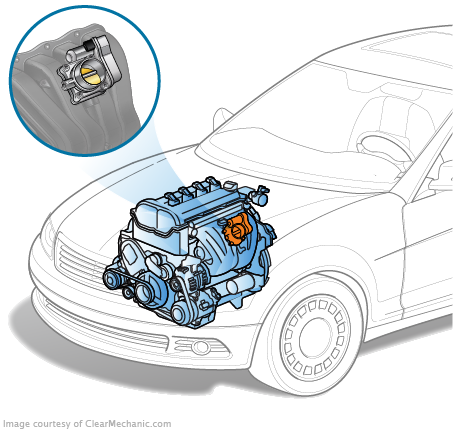

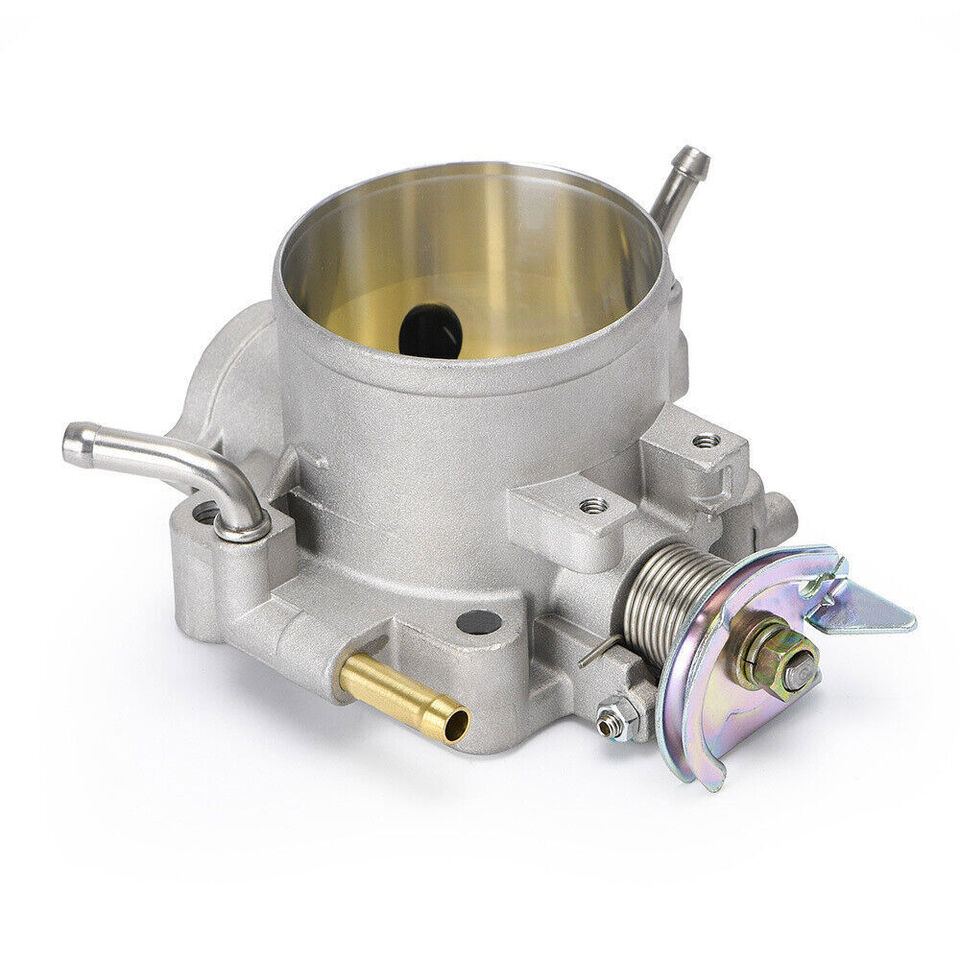

   • Throttle Body: The housing that contains the throttle valve. It is usually mounted on the intake manifold.
   • Throttle Valve (Butterfly Valve): A rotating disc or plate that opens and closes to regulate airflow into the engine.

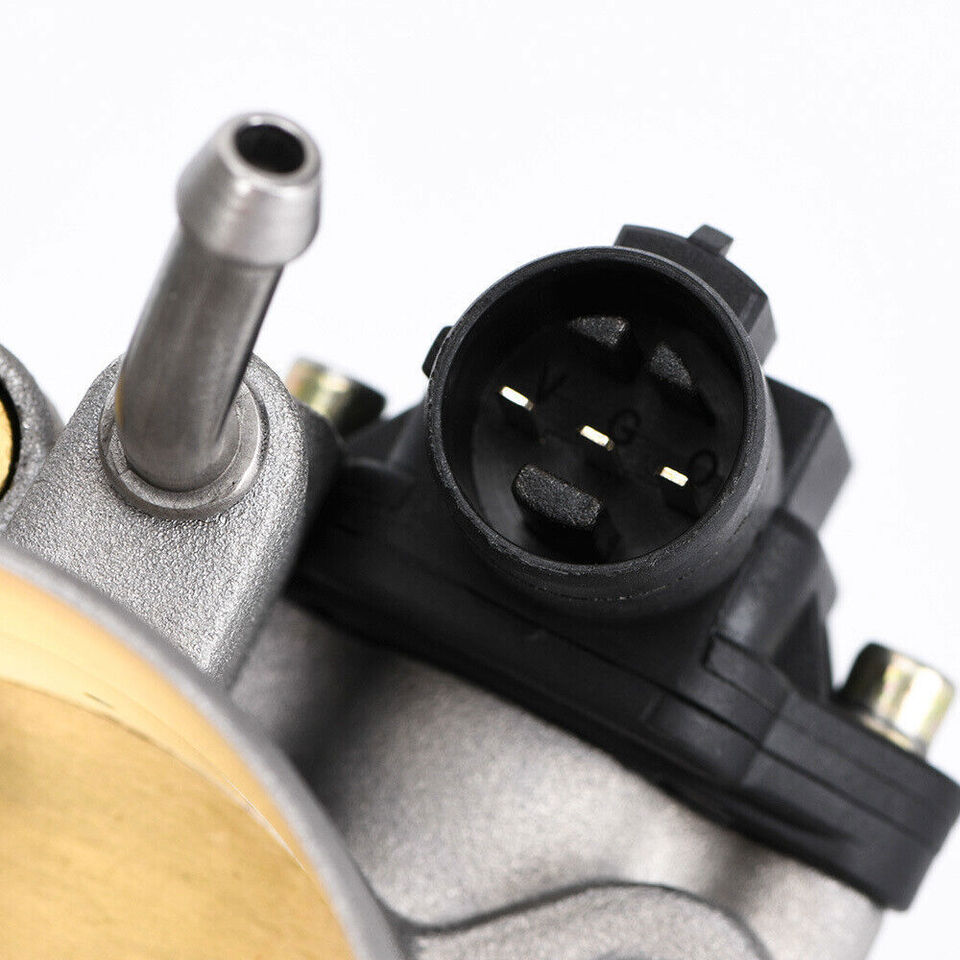

   • Throttle Position Sensor (TPS): A sensor that monitors the position of the throttle valve and sends this information to the ECU.
   • Throttle Cable or Electronic Throttle Control (ETC): Links the accelerator pedal to the throttle body. In older vehicles, a cable mechanically connects the pedal to the throttle. In modern vehicles, ETC uses electronic signals.

3. Types of Throttles:

   • Mechanical Throttle: Uses a cable or linkage to connect the accelerator pedal directly to the throttle body.
   • Electronic Throttle Control (ETC): Also known as drive-by-wire, uses sensors and actuators to control the throttle electronically, providing more precise control and integration with other engine management systems.
4.

5. Materials:

   • Aluminum: Commonly used for throttle bodies due to its light weight and durability.
   • Plastic or Composite Materials: Used in some modern throttle bodies for reduced weight and cost.

6. Applications:

   • Passenger Vehicles: Found in all types of cars, trucks, and SUVs.
   • Performance Vehicles: High-performance throttles designed for enhanced airflow and response.
   • Commercial Vehicles: Used in trucks, buses, and other heavy-duty vehicles.

7. Advantages:

   • Control: Provides precise control over engine power and speed.
   • Efficiency: Modern electronic throttles enhance fuel efficiency and reduce emissions.
   • Integration: Can be integrated with other vehicle systems for improved overall performance and safety.

8. Maintenance:

   • Regular cleaning of the throttle body to remove carbon buildup that can affect performance.
   • Inspection of the throttle position sensor for proper operation.
   • Ensuring the throttle cable (if applicable) is in good condition and properly adjusted.

9. Common Issues:

   • Dirty Throttle Body: Can cause rough idling, stalling, and poor acceleration.
   • Faulty Throttle Position Sensor: Can result in inconsistent engine performance and trigger the check engine light.
   • Throttle Lag: Delay in throttle response, often due to issues with the electronic throttle control system.
