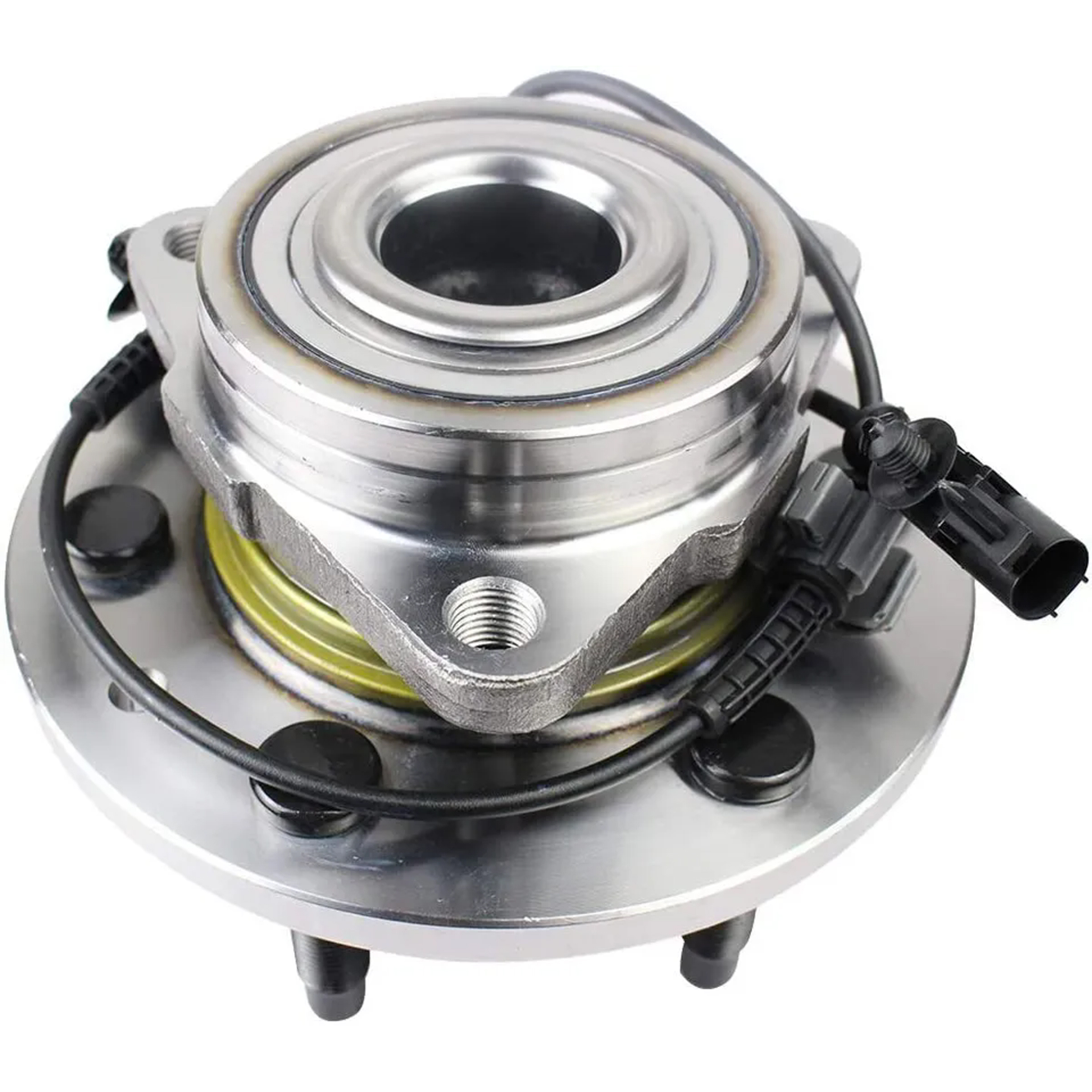

Hub Unit

Hub Unit
Hub Unit Hub Unit Hub Unit

Hub Unit
is a critical component in a vehicle's wheel system. It provides the mounting point for the wheel and facilitates its smooth rotation. The wheel hub unit typically integrates the wheel bearing and the hub into a single assembly, making it easier to install and maintain.

Key Characteristics of a Wheel Hub Unit:

  1. Functionality:

    • The wheel hub unit serves as the central attachment point for the wheel and brake rotor or drum.
    • It supports the wheel's rotation and maintains the wheel's alignment with the suspension system.
    • The integrated bearing allows for smooth and low-friction rotation of the wheel.

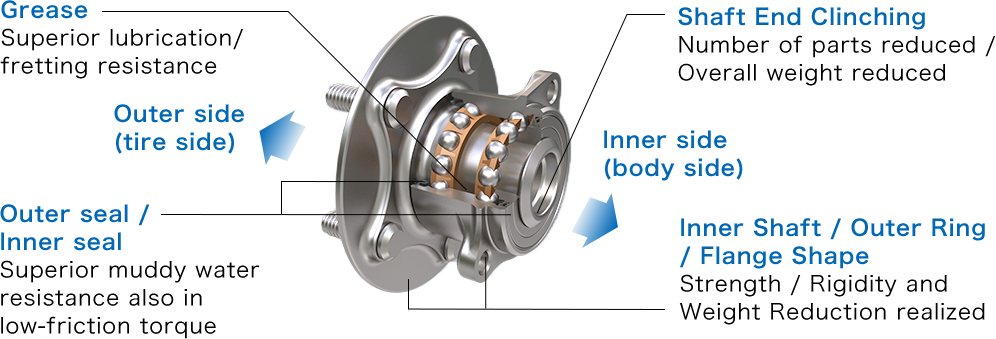

  2. Components:

    • Hub: The central part of the assembly that connects to the vehicle's axle or spindle.
    • Wheel Bearing: An integrated bearing that supports the wheel's rotation and handles radial and axial loads.
    • Wheel Studs/Bolts: Protrude from the hub and provide mounting points for the wheel.
    • ABS Sensor (Optional): Some wheel hub units include an integrated anti-lock braking system (ABS) sensor for monitoring wheel speed.
  3. Types of Wheel Hub Units:

    • Non-Driven Wheel Hub: Used on non-driven wheels (e.g., rear wheels of a front-wheel-drive vehicle).
    • Driven Wheel Hub: Incorporates splines to connect with the drive shaft, used on driven wheels (e.g., front wheels of a front-wheel-drive vehicle or all-wheel-drive vehicles).
    • Hub Unit with Integrated ABS Sensor: Includes a sensor for the vehicle's ABS system.
  • Materials:

    • Steel: Commonly used for durability and strength.
    • Aluminum: Used in high-performance and lightweight applications to reduce unsprung weight.
  • Applications:

    • Passenger Vehicles: Found in cars, trucks, and SUVs.
    • Commercial Vehicles: Used in larger trucks and buses.
    • Performance Vehicles: Enhanced wheel hub units for improved durability and performance.
  • Advantages:

    • Ease of Installation: Integrated design simplifies installation and maintenance.
    • Durability: Built to withstand high loads and harsh conditions.
    • Reduced Maintenance: Sealed bearings reduce the need for regular lubrication and maintenance.
  • Maintenance:

    • Regular inspection for signs of wear or damage, such as noise, vibration, or looseness in the wheel.
    • Timely replacement of the entire hub unit if the bearing is worn or damaged, as most units are non-serviceable.
  • Common Issues:

    • Bearing Wear: Can cause humming or growling noises, especially at higher speeds.
    • ABS Sensor Failure: Can trigger the ABS warning light and affect braking performance.
    • Wheel Looseness: Can lead to poor handling and increased tire wear.
